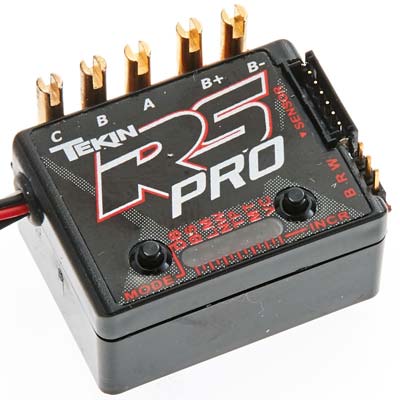

TEKIN RS PRO BLACK ESC

TEKIN RS PRO BLACK ESC

  • $ 229.99


Item Number: TEKTT1160

This is the Tekin RS Pro Black Edition Brushless Electronic Speed Control. ***1S LiPo operation requires separate booster or receiver battery***

FEATURES: Specifically designed for 1S-2S Spec Classes, and Drag Racing to take advantage of the ULR (Ultra Low Resistance) circuit design
LiPo safe with custom voltage cutoffs
Operates brushed or brushless motors
Adjustable throttle and brake frequencies, programmable BEC and Data Logging capability (requires HotWire interface, sold separately)
High voltage adjustable BEC (battery eliminator circuitry)
Sensor checker
On-board temperature indicator
Self-diagnostics with Error Codes
Sensored or sensorless operation
Sensor plug for precise commutation
Ultra-smooth and precise throttle and braking control
QuickTune one touch programming

INCLUDES: Tekin RS Pro Black Edition ESC

REQUIRES: Motor such as the Tekin Spec-R series

SPECS: Input Voltage: 1-3S LiPo, 4-9 cell NiMH-NiCD
*1S LiPo operation requires separate booster or receiver battery
Motor Limit Brushless Mode 2S & 3S: 36mm can 2-pole
Motor Limit Brushed 2S & 3S: 540 and 550
Amperage: 480A per phase
ON Resistance: .000096ohm
Battery Eliminator Circuitry (BEC): 6.0/7.4V @ 5.5A
Weight: 1.23oz (35g)
Controls: Forward/Brake/Reverse
