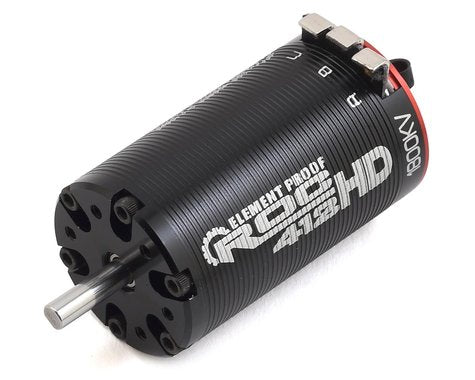

Item Number: TEKTT2633

Features:
Element Proof design tackles Water, Mud and Snow*
18.5mm Rotor provides more Torque and Braking Power
5mm High-Strength Pinion Shaft
550 Length Can provides improved heat dissipation
4 Pole 12 Slot Crawler Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
Crawler, Rock Race and Trail Rig Specific
Neodymium Sintered Magnets
Rebuildable Design
High Purity Copper Windings Maximizes Efficiency
Precision Engineered for Maximum Energy Conversion
Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
High RPM ABEC5 Oversized Bearings
NOTE:
Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.
The ROC412 HD is not intended for operation while submerged in liquid.
Anytime your motor sees water it is important that you perform the proper after run maintenance. Warranty does not cover neglect, lack of maintenance, bearings, rust or any damage that may occur if the motor is submerged in water.
Specifications:
Input Voltage: 3S
Weight: 221g / 7.8oz
Shaft Dimensions: 5mm x 15.3mm / .196" x .60"
Motor Diameter: 36mm / 1.41"
Motor Length: 62.5mm / 2.5"
Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm ALL
Rebuildable: Yes
