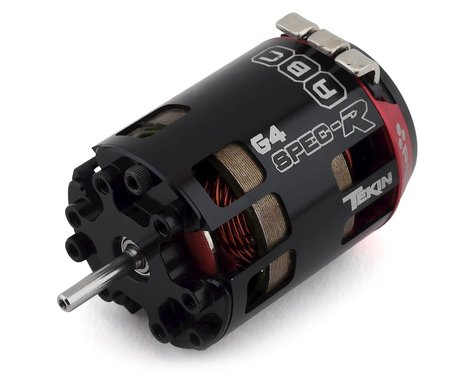

TEKIN GEN 4 13.5 SPEC-R MOTOR

TEKIN GEN 4 13.5 SPEC-R MOTOR

  • $ 109.99


Item Number: TEKTT2763

Features:

60 Degrees Adjustable Timing Advance
SPEC Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
?Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Low Resistance, High Power Solder Tabs
Sensored System Ready
Anodized End-bell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Rebuild-able Design
Solder-less Sensor PCB Replacement
Legal in Major Race Governing Bodies
ROAR Approved
Specifications:
Input Voltage: 1-2S LiPO - 25.5T / 21.5T / 17.5T / 13.5T / 10.5T / 6.5T
Weight: 5.1oz / 145g
Shaft Dimensions: 3.18mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C
Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
Rotor Size: 12.3mm BLACK - 25.5T; 12.5mm BLUE - 21.5T / 17.5T / 13.5T / 10.5T
Rebuildable: Yes
