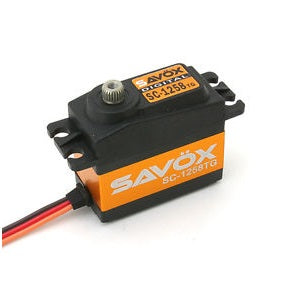

SAVOX SERVO SA1258TG

SAVOX SERVO SA1258TG

  • $ 59.99


Item Number: SAVSAS1258TG

STANDARD SIZE CORELESS DIGITAL SERVO .08/166 MINIMIZED BACKLASH

The SA1258TG pushes167 oz of torque and a blistering .08 seconds transit time. This is a great upgrade to most comparably priced servos. The minimized backlash on the SA1258TG is helpful in plane wings for greater accuracy and less gear play.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
Super light-weight.
Coreless motor provides high speed, incredible efficiency, and low power consumption.
Titanium gears ensure long life and durability.
The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Our servos are totally green - from materials to production, these servos are environmentally friendly.
Ideal for plane applications where a minimized backlash is needed.


Dimensions(mm) 40.3x20.2x37.2
Weight(g): 52.4
Speed @4.8V: .10sec
Torque@4.8V: 133.3 oz-in
Speed @ 6.0V: .08sec
Torque @ 6.0V: 166.6 oz-in.
Gear Type: Titanium Coated
Bearings: 2 BB
Frequency: 250-333Hz
Pulse Width Frequency: 1520>
