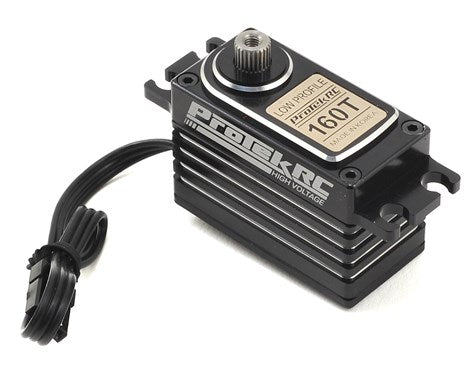

Item Number: PTK-160T

Features:
Low-Profile case saves space and weight
Ideal for any 1/12 to 1/10 scale vehicle application
Full aluminum case
High voltage circuitry
0.08 transit speed, and 216 oz-in of torque @ 6.0V
0.06 transit speed, and 274 oz-in of torque @ 7.4V
Aluminum single arm servo horn
Full metal gears and dual ball bearings
160mm long 22awg connector wire w/gold plated connectors
Coreless motor
Servo Model
160T
Recommended Application 1/12 to 1/10 scale Surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.08/60° sec
Operating Speed @ 7.4V
0.06/60° sec
Dynamic Torque @ 6.0V
216 oz-in (15.5 kg-cm)
Dynamic Torque @ 7.4V
274 oz-in (19.7 kg-cm)
Motor Type
High Efficiency Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 54.5g
Pulse/Frequency
1520µs / 333hz
