PROLINE  SHOCKS 90-95MM

PROLINE SHOCKS 90-95MM

  • $ 63.99


Item Number: PRO6343-00

Best Performing Scale Shocks Pro-Line Has Ever Made
Big Bore Holds More Oil for Better Performance
Pre-Assembled, Just Fill and Go
Single Low Friction X-Ring Seal Prevents Leaks
CNC Machined Parts
Optional +5mm Shock Ends Included
Dual Rate Single Spring Design
Hard Chrome Coated Shock Shaft
Captured Lower Spring Perch
Rebuild Kit and Spring Assortment Sold Separately
Overview
Designed to fit many popular 1:10 scale crawler vehicles. The large bore allows the Big Bore Shocks to function as true performance shocks due to the larger oil volume in the shock body. CNC machined Aluminum Shock Caps, Collars, Bodies, Bottom Caps, and Hard Chrome Coated Steel Shock Shafts. X-Ring seals (6343-01 for replacements) seal the main shaft for smooth, low friction action and to prevent leaks.

All-new dual-rate spring design for scale looks and performance. Optional softer and firmer dual-rate springs are available in the Big Bore Scaler Shock Spring Assortment (6343-02). The lower spring perch is captured, so you always know it will stay where it belongs. 90mm at full extended length, and collapse down to about 64mm (when the rubber bump stop is removed). Includes extra 5mm longer Shock Ends to increase the shock length! Mostly pre-built (just add oil).

Needed to Complete
Silicone Shock Oil

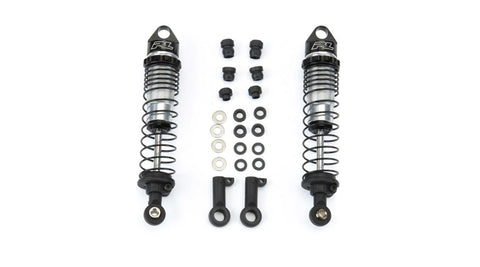

What's in the box?
Big Bore Scaler Shocks (90mm-95mm) (2pcs)
+5mm Shock Ends (2pcs)
Standard Upper Pivot Balls (2pcs)
Captured Upper Pivot Balls (4pcs)
Metal Mounting Washers (4 pcs)
Optional 1mm and 2mm Plastic Internal Shock Limiters (8 pcs)
