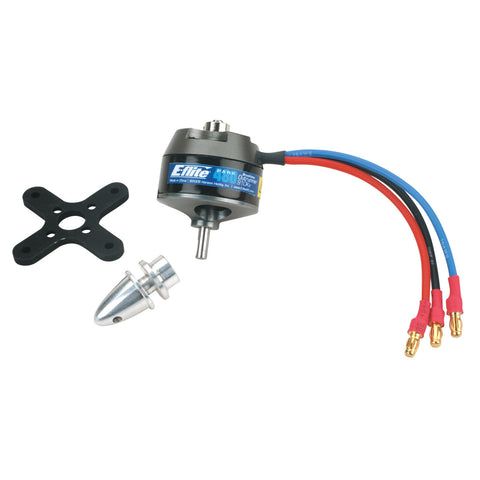

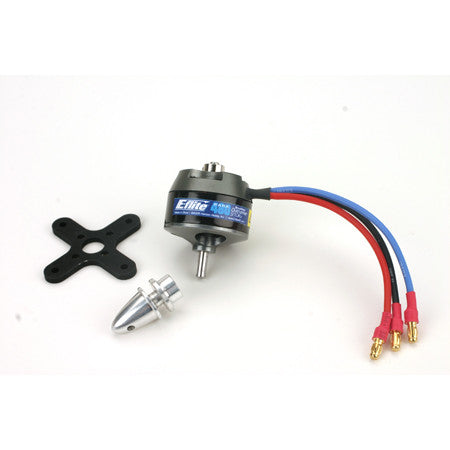

EFLITE PARK 480 BL OUTRUNNER

EFLITE PARK 480 BL OUTRUNNER

  • $ 49.99


Item Number: EFLM1500

Features

Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
Ideal for scale park flyers 25–35 oz (710–990 g)
Ideal for models requiring up to 250 watts of power
High-torque, direct-drive alternative to inrunner brushless motors
Includes mount, prop adapters and mounting hardware
External rotor design, 4mm shaft can easily be reversed for alternative motor installations
Slotted 12-pole outrunner design
Quiet, lightweight operation
High-quality construction with ball bearings and hardened steel shaft

Overview

The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 250 watts of power. It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Tech Notes

This motor is more ideal for the Gen II Thunder Power cells. The 1020Kv version is more ideal for the Thunder Power Pro-Lite cells (ending in PL).

Maximum operating temperature: 220 degrees Fahrenheit.

Adequate cooling is required for all motor operation at maximum current levels.

Maximum burst current duration is 15 seconds. Adequate time between maximum burst intervals is required.

You will need...

20A–35A brushless ESC

2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-CD

10x7–12x6 propeller

New Window How to Determine a Model's Power Requirements (68 KB)

Specifications

Type: Brushless outrunner
Size: Park flyer
Bearings or Bushings: One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing
Wire Gauge: 16
Recommended Prop Range: 10x7 to 12x6
Voltage: 7.2 to 12
RPM/Volt (Kv): 910
Resistance (Ri): .08 ohms
Idle Current (Io): .85A @8V
Continuous Current: 20A
Maximum Burst Current: 25A (15 sec)
Cells: 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Speed Control: 20–35A brushless
Weight: 87 g (3.1 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 4mm (.16 in)
Overall Length: 33mm (1.30 in)
