Item Number: CSE010011500

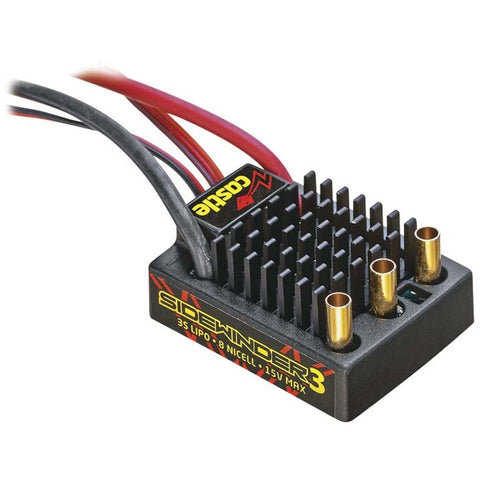

This is the Castle Creations Sidewinder SV3 12V Electronic Speed Control.

FEATURES

Recommended for all 1/10 scale buggy and truggy applications that
weigh less than 5lbs (2.25kg) ready to run (not for use in heavier
vehicles such as E-Revos or E-Maxx class vehicles)
USB programming capability via Castle Link USB adapter (not included,
order CSEM6300)
Waterproof for use in nearly every environment (not intended for
operation while submerged in liquid)
Compatible with the Castle Creations 14xx series NeuCastle motors
Reversible with reverse lockout

INCLUDES

Sidewinder SV3 12V ESC with 13 gauge Battery Wires with Pre-Tinned
Leads, 4mm Female Bullets for Motor Connection, Receiver Connector
On/Off Switch, and Instructions

REQUIREMENTS

Battery connectors

SPECIFICATIONS

Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
Brake: Proportional
Reversible: Yes, with lockout
Dimensions: 1.93 x 1.48 x 0.79" (49 x 38 x 20mm)
Weight: 1.96 oz (55.5 g) with 5" (127mm) long battery wires and no
battery connector
