Item Number: KDE23

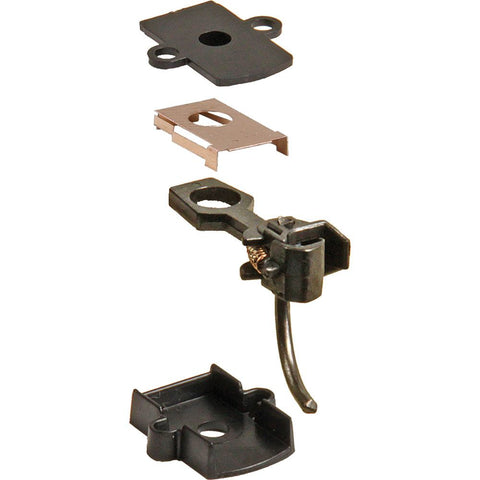

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#23 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Package Includes:

(2) Pair #23 Plastic Shank Couplers - Short Centerset Shank
(2) Pair #634 Centering Spring NO.5® Style
(2) Pair 055" ID & .100" ID Bushing/Sleeves
(2) Pair #212 Talgo Truck Adaptors
(2) Pair #213 Gearboxes
(2) Pair #232 Gearboxes
(2) #622 Knuckle Springs

#23 Plastic Coupler Features:
Material  - Metal Knuckle, Plastic Coupler Shank
Shank Length  - Short (1/4") (center hole to back of coupler head)
Coupler Offset  - Centerset
Knuckle Spring  - #622
Centering System  - Standard Shank
Centering Spring  - #634 Centering Spring NO.5® Style
Head  - Standard Head
Works In Place of  - #143, short centerset "clone" couplers
Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes
