TEKIN 17.5 REDLINE GEN3 MOTOR
TEKTT2705
Item Number: TEKTT2705

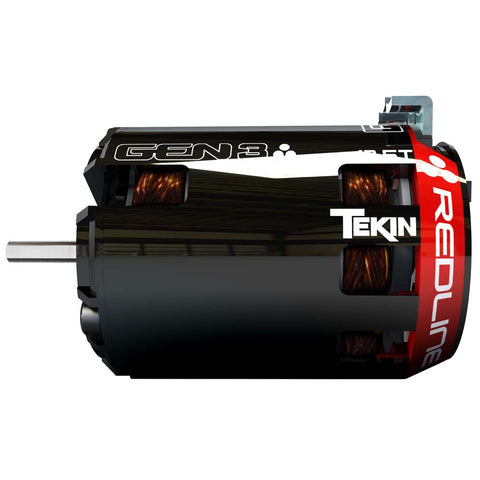

This is the Tekin Redline GEN3 17.5 Turn Brushless Sensored Motor.
FEATURES
RPM version designed for applications where higher RPM is more
benefical than torque
Ideal for 1/12 and touring car racing classes
CNC machined T 6061 billet aluminum heat sink can
For on- or off-road use
12.5mm performance rotor
Dual-plug sensor wire harness for all sensored and sensorless systems
Anodized end-bell plates maximize corrosion and wear resistance
High RPM precision ball bearings
Neodymium sintered magnet
Rebuildable
Adjustable timing
Low resistance solder tabs
Solderless sensor PCB replacement
INCLUDES
Redline GEN3 17.5 Turn Brushless Sensored Motor with Sensor Wire
SPECIFICATIONS
Input Voltage: 2S all, 3S-10.5 and up
Shaft Dimensions: 3.2mm (1/8") x 15.3mm
Weight: 5.6oz (158g)
Motor Diameter: 1.40" (35.85mm)
Motor Length: 1.9" (48.5mm)
Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
